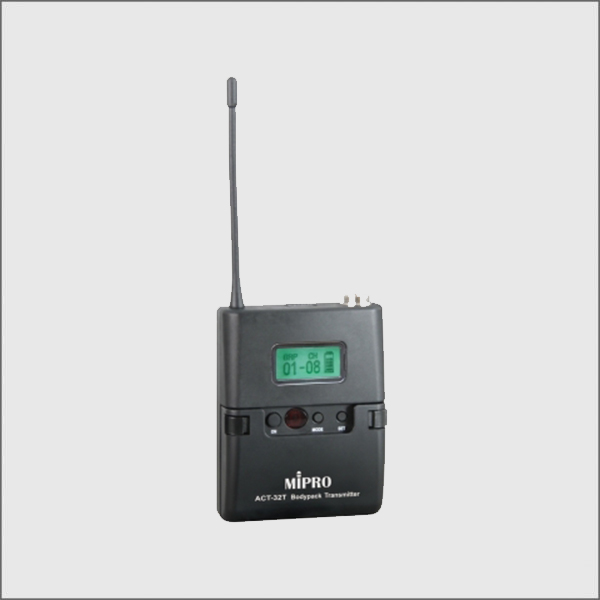

ACT-32T
משדר חגורה אלחוטי לסדרה ACT-100
- Miniature, compact design.
- Top features mute switch, mini-XLR connector and antenna.
- Backlit LCD displays various parameters and indicators.
- Unique battery cover design provides easy access to operational controls and protects against accidental change of settings.
- Connector for optional MJ-70 remote mute switch cable.
- Low spurious PLL-synthesized technology enhances frequency stability and reliability. One-touch ACT syncs the transmitter and receiver frequency automatically.
- Selectable impedance for microphone or guitar/line inputs.
- 4-pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cable.
- Highly efficient power consumption circuitry ensures long operating hours from 2 AA batteries.
- Adjustable belt clip allows wearing transmitter in up or down position.
|
Housing |
Rugged Plastic |
|
Frequency Range |
UHF 480 ~ 934 MHz |
|
Bandwidth |
24 MHz |
|
Oscillation Mode |
PLL Synthesized |
| Channel Set-Up |
ACT Sync |
|
LCD Display |
LCD displays working band-code, group, channel, frequency, AF input gain, RF output power, mute & lock status, battery status and error codes. |
| RF Output Power |
10 mW / 50 mW (switchable) |
| Spurious Emissions |
<-55 dBc |
| Max. Input Level |
0 dBV |
| Mute Connector |
Optional MJ-70 remote mute switch |
| Battery | 2 AA alkaline |
| Dimensions (W × H × D) | 63 × 82 × 22 mm / 2.5 × 3.2 × 0.9 “ |
| Weight | Approx. 81 g / 2.9 oz (excluding batteries) |
| Patents & Approvals | Patented. Telecom and safety regulations approved. |
| Note | Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries. |
